| Business Type | Exporter, Supplier, Trader, Distributor |
| Feature | High Performance |
| Condition | New |
| Table Size | 400 X 320 Mm |
| Click to view more | |
Preferred Buyer From
| Location | Anywhere in India |
Product Details

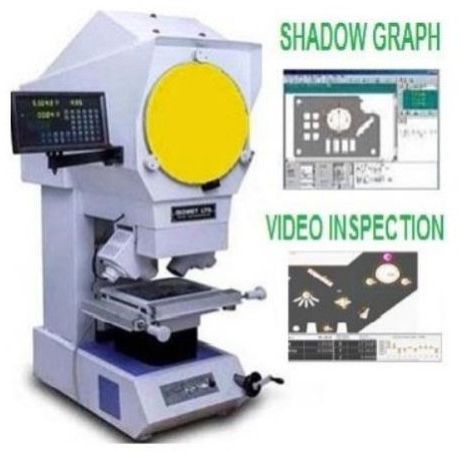

Profile projector model-500 bench
Authorized Dealer for Isomet Metrology

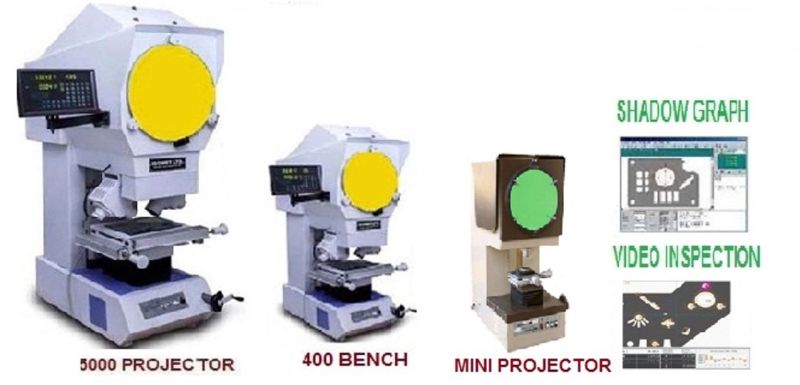

Isomet fully automated profile projector model-400 bench with report generation standard room model, display of image while measurement proceed with data processor up-loaded on your p. C. Technical parameters (specification)
light path -vertical light path system. screen -400mm dia with 360 numerical indications and dial vernier least count 2 minutes. magnification standard -built in 10x telecentric imported optics high resolution contour accuracy ±0. 1% or less (optional upgradeable 20x,25x,50x,100x) -price on request. Micro work stage on high precision linear bearing. i) table top dimension -400x320mm glass size-280x180mm travel-350x220 least count . 0. 001mim dimension -485x950x1500mm height maximum component dia -135mm accuracy ±3 micron
isomet report generating cad transfer measuring profile projector-500 bench with video measuring attachment. Table size-500x320, digital least count 1 micron data processing software edge deduction automatic report.
2 axis digital read out system counter with rs 232 port & 2 axis linear scales reading with smart dro complete scales reading with smart dro complete.
