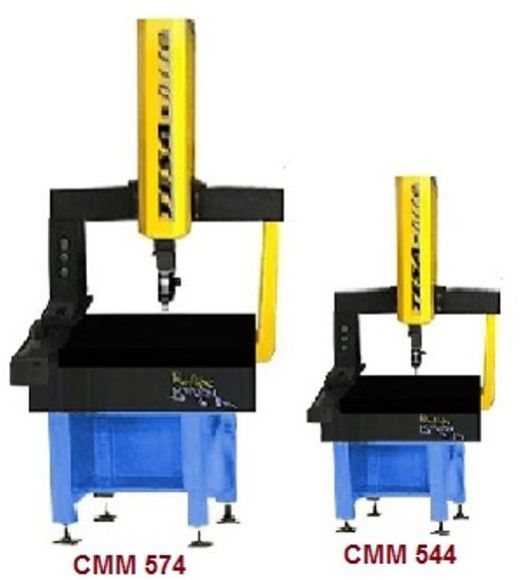

Co-ordinate measuring machine reflex tesa model-544/brown & sharp

Iso met metrology authorized dealer

We provide annual maintenance services

High precision cmm floating on air bearing with micro hand wheel forinspection of projected geometry, cylinder, circles, line, angle withrenishaw touch trigger probe automatic report generation fine touchwheel measurement with cad transfer. Specifications:measuring rangex-axis mm 500y-axis mm 400z-axis mm 400resolution μm 0. 001 mmaccuracy, mpee μm below 3. 5 + l/300generalwork piece weight kg 300mmclearance under bridge mm 400 mmguide system air bearing high precision moving on all axiswith 8 kgs. Air adjustable pre-loaded. Work table granite material with m8/m10 tapped insertsmode of operation manual report automatic and re-measure automaticrenishaw probe tp8 built in3d cmm software geo packwith cpu and cmm controller. Including:mechanical structureconsisting of granite guide ways on all axis with fine hand wheelscomplete working & preloaded air bearings. Counter balanced z axis. Backlash free driving system. On all axes. Evaluation unitcomprising of cmm controller drives card, counter card &associated electronics built in cpu window xp7. Full operating softwaregeometric measuring software. Windows based software for 3dmeasurements. Report and cad model generation, dimensionspositions, 2d,3d distances, angles, tolerances, radius,3d inclinedwhole, point, line, plane, hole, pin, cylinder, theoretical rotation andshifting of the reference system, cylinders features additionally thesurface option adds best fit part alignment.

Probing systemrenishaw tp8 probe head with interfacetouch trigger probe 7 standard styli kit 10mm,20mm,25mm,30mm,50mm,75mm,100mm and star head, calibration sphere : 30 mm diawarrantee & support for one yearbuilt in c. P. U.

Above machine inworking condition under warrantyfor 2 years at customer site.

Add on cnc with renishaw t3 andpc dims cnc cmm software optionto suit all machine.

Equipment and room condition 20* temperaturerequired before installationindependent compressed air with air dryer 10 kgs. Barservo stabilizer, air drier with filter.

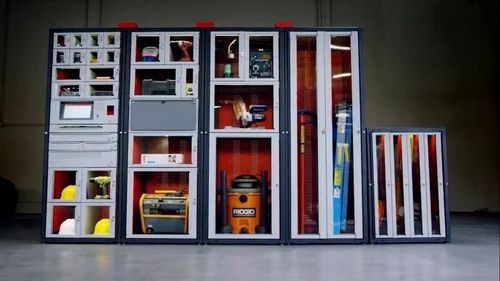

 Our Autocrib Industrial Vending Systems ensures the following:

1.    Tracking down Tools and gauges

2.    To get complete check-in/check-out sheet for tools and gauges

3.    Having a properly calibrated gauge

4.    Keep the operators idle time to the minimum

5.    Reduces the walk around time of the operators to get the
necessary tools for operations

6.    Stock-outs to be kept to the minimum

7.    Usage of reground tools available in stock, against the new
cutting tools being used first

8.    Provision of data through requests and confirmation via Web
Services to the client’s ERP/MRP

9.    Compliance on Industry 4.0

10. PPE is made available to the end user 24 X7.

11. Accountability to be ensured for employees by authentication
through RFID / Bar code / Biometric.

12. Time for approval process are significantly reduced, since
electronic data replaces the paper work.

13. No walking & waiting time at store as the systems are installed at
the point of use.

14. Budget limitation applied on the go for every employee which
reduces overrun expenditure.

15. End user operates the machine like an ATM.

16. Full employee list can be added or removed thro batch process.
