Measuring Instruments

Product Description

Wire Gauge Round

Kristeel Shinwa SWG Round Wire Gauge 1-36

Model: 1505
Round

Other Models Available

Model: 1506
Rectangular

Model: RMWG
Rectangular MetricAuthorized Dealer

Kristeel Shinwa Measuring Instruments

Product Description

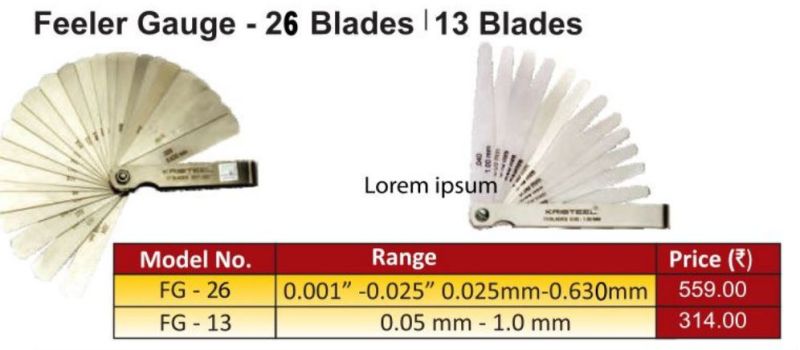

Feeler gauge

Model: FG-13
Brand: Kristeel
Range: 0.05mm to 1.0mm(Metric)
No of Blades: 13
Blade Length: 3" & 4"

(0.05, 0.1, 0.15, 0.2, 0.25, 0.3, 0.4, 0.5, 0.6, 0.7, 0.8, 0.9, 1.0mm)

TESA  DIGITAL  HEIGHT  MASTER  MODEL-600

Measuring Specification

Measuring Specification                                   mm600

Accuracy                                                          +/-um  1.3+(L/250)

Resolution                                                        0.005

Measuring Force                                              N 0.4

Direct Conversion                                             mm//in

ISOMET METROLOGY DEALER

Additional Information:

• Delivery Time: One month

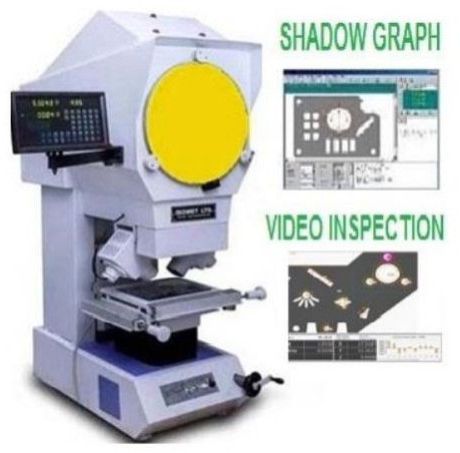

Profile projector model-500 bench

Authorized Dealer for Isomet Metrology

Isomet fully automated profile projector model-400 bench with report generation standard room model, display of image while measurement proceed with data processor up-loaded on your p. C. Technical parameters (specification)

light path -vertical light path system. screen -400mm dia with 360 numerical indications and dial vernier least count 2 minutes. magnification standard -built in 10x telecentric imported optics high resolution contour accuracy ±0. 1% or less (optional upgradeable 20x,25x,50x,100x) -price on request. Micro work stage on high precision linear bearing. i) table top dimension -400x320mm glass size-280x180mm travel-350x220 least count . 0. 001mim dimension -485x950x1500mm height maximum component dia -135mm accuracy ±3 micron

isomet report generating cad transfer measuring  profile projector-500 bench with video measuring attachment. Table size-500x320, digital least count 1 micron data processing software edge deduction automatic report.

2 axis digital read out system counter with rs 232 port & 2 axis linear scales reading with smart dro complete scales reading with smart dro complete.

Tyre Tread Depth Gauge

Brand: Kristeel Shinwa
Model: TDG-S
Measurement Range: 0-50mm



Other Models Available:
TDG-B: 0-100mm
TDG-L: 0-150mm

Product Description

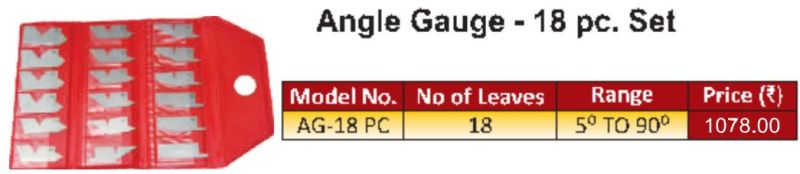

Angle Gauge

5 Degree to 90 Degree

Brand: Kristeel Shinwa

This gauge is made of hardened and tempered Stainless Steel material having a range of 5 Degree to 90 Degree incremental of 5 Degree (total 18 Leaves).

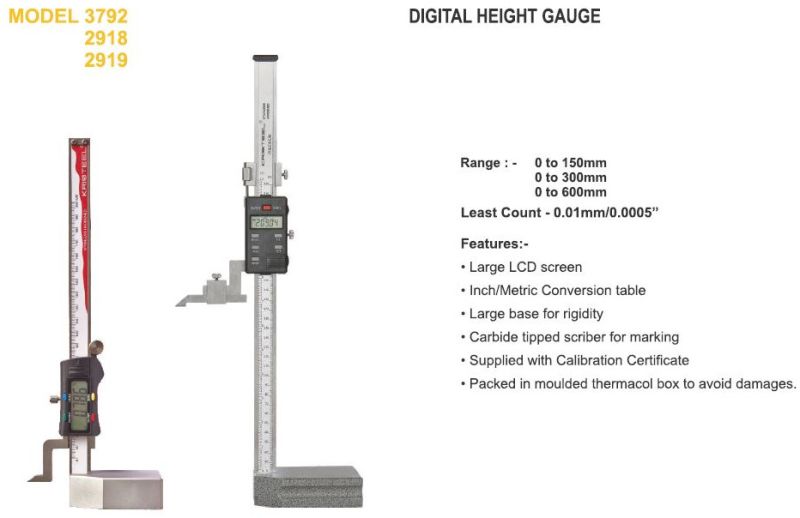

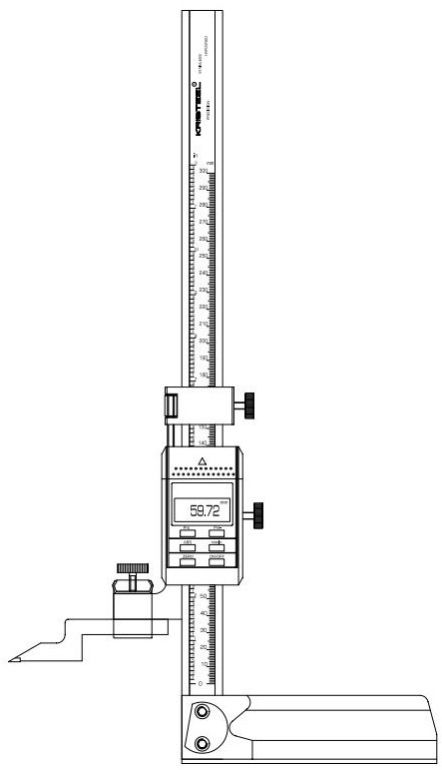

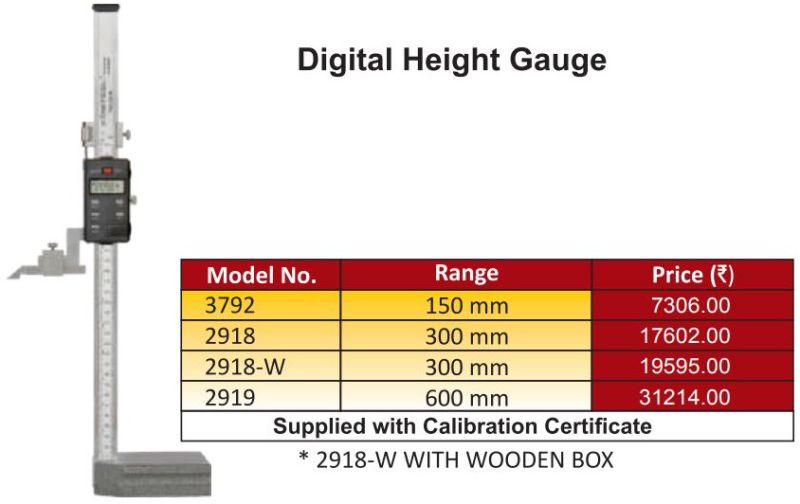

Digital Height Gauge with Calibration Certificate

Model 2919

Range: 0 to 600mm

Brand: Kristeel Shinwa



Other Ranges available:

0 to 150mm

0 to 300mm

Features:-

Large LCD screen

Least Count - 0.01mm/0.0005"

Inch / Metric Conversion table

Large base for rigidity

Carbide tipped scriber for marking

Supplied with Calibration Certification

Packed in moulded thermacol box to avoid damages

Product Description

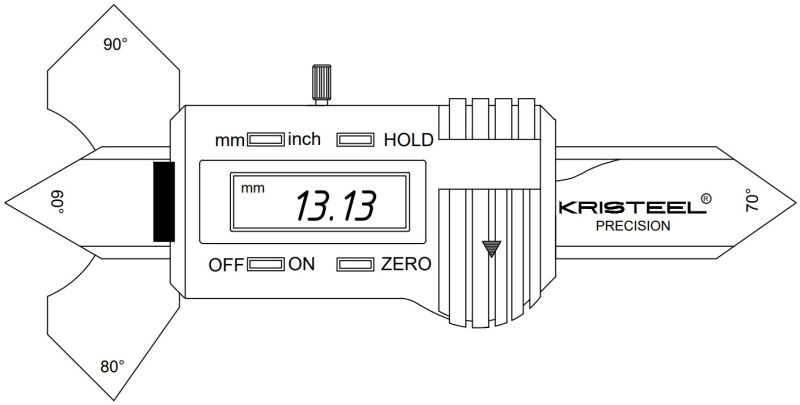

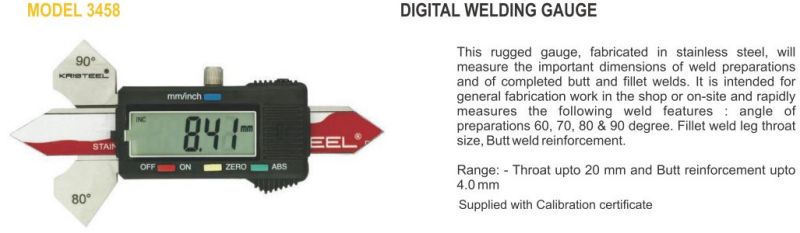

Digital Welding Gauge - Model 3458

Brand: Kristeel Shinwa

This rugged gauge, fabricated in stainless steel, will measure the important dimensions of weld preparations and of completed butt and fillet welds. It is intended for general fabrication work in the shop or on-site and rapidly measures the following weld features : angle of preparations 60, 70, 80 & 90 degree. Fillet weld leg throat size, Butt weld reinforcement.

Range: Throat upto 20mm and Butt reinforcement upto 4.0 mm

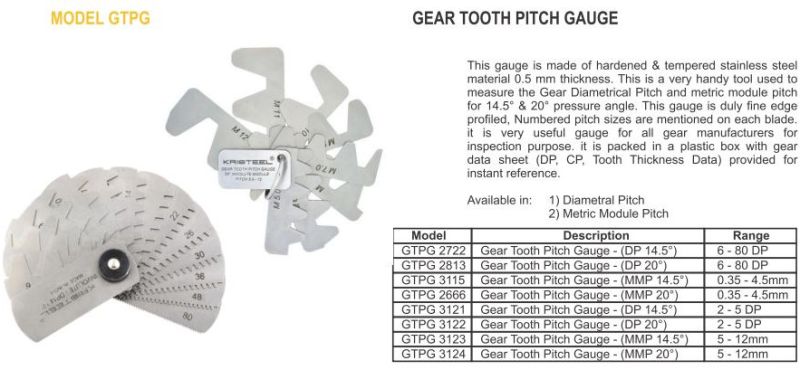

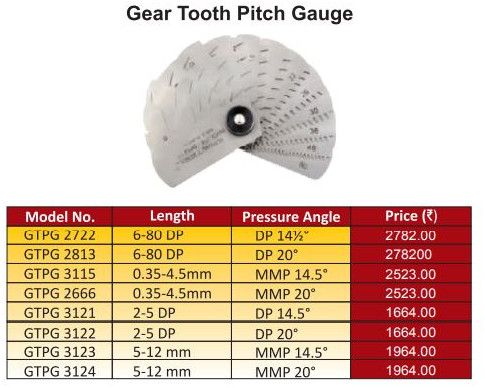

Gear Tooth Pitch Gauge
Model: GTPG 3124
Range: 5-12mm & MMP20 Degree

Available in

Diametral Pitch
Metric Module Pitch

Brand: Kristeel Shinwa
Material: Stainless Steel

Measuring Instruments

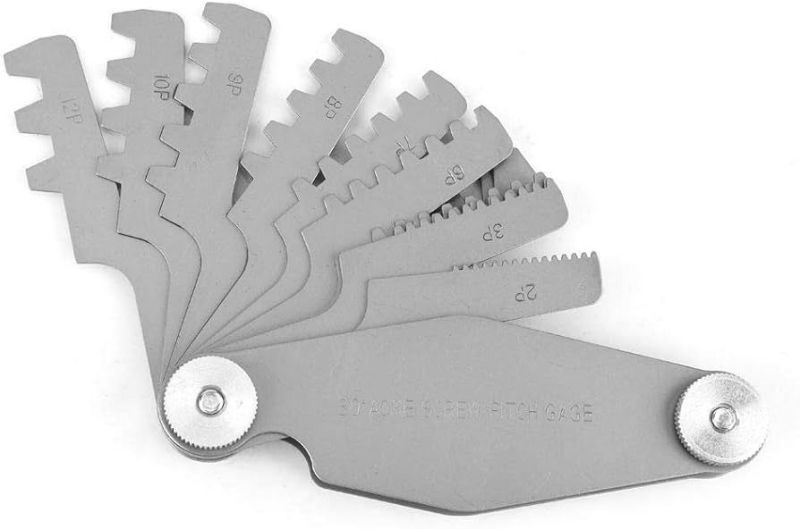

Trapezoidal Metric Screw Pitch Gauge
Brand: Kristeel
Model: TSPG

Measuring Range:
Metric 30 Degree & Range 4 to 12 mm

No of Leaves:
8

Product Description

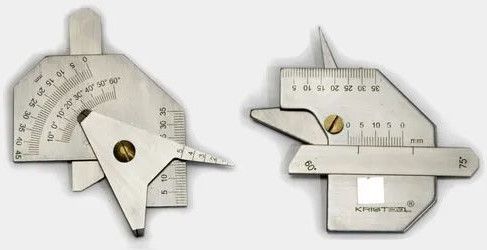

Weld Fillet Gauge - Multi Purpose Weld Gauge - MODEL WG A
Brand: Kristeel Shinwa

A versatile tool for the use of welding operator. The tool can be used with ease for weld joint preparatory functions as well as for checking of the weld joint. The tool combines a bore gauge, angle gauge, depth

Product Description

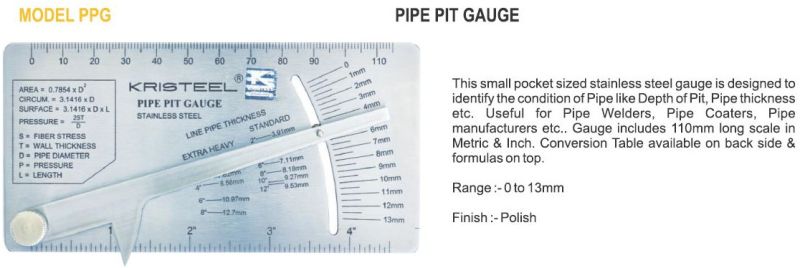

This small pocket sized stainless steel gauge is designed to identify the condition of Pipe like Depth of Pit, Pipe thickness, etc,. Useful for Pipe Welders, Pipe Coaters, Pipe manufacturers etc,. Gauge included 110 mm long scale in Metric & Inch. Conversion Table available on back side & formulas on top.

Range: 0-13 mm

Finish: Polish

Product Description

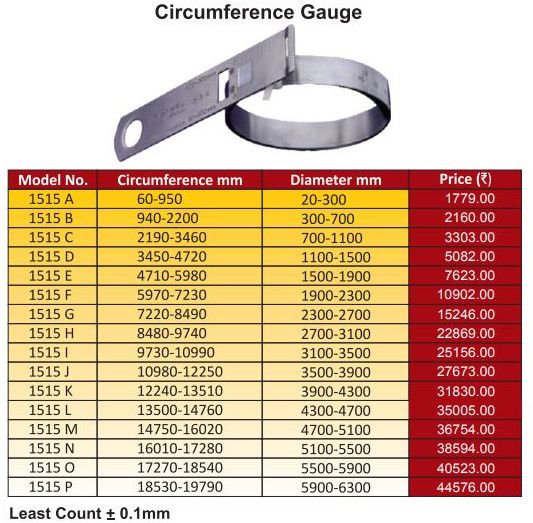

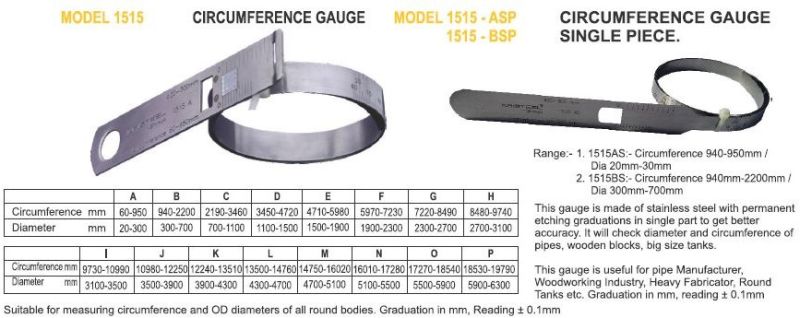

Circumference Gauge

Brand: Kristeel

Model: 1515A

Size: 20-300mm Diameter

60-950mm Circumference

Also Available in Different Circumference / Diameter Sizes

Range of Diameters available

20-300

300-700

700-1100

1100-1500

1500-1900

1900-2300

2300-2700

2700-3100

3100-3500

3500-3900

3900-4300

4300-4700

4700-5100

5100-5500

5500-5900

5900-6300

Product Description

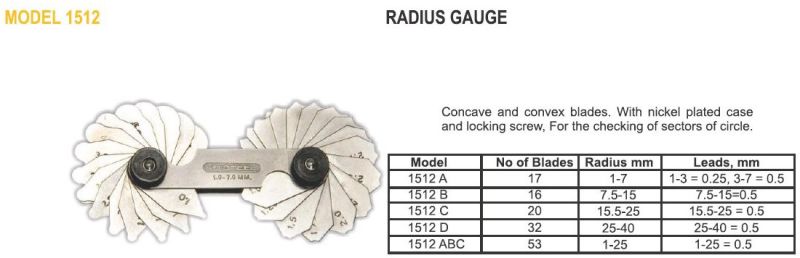

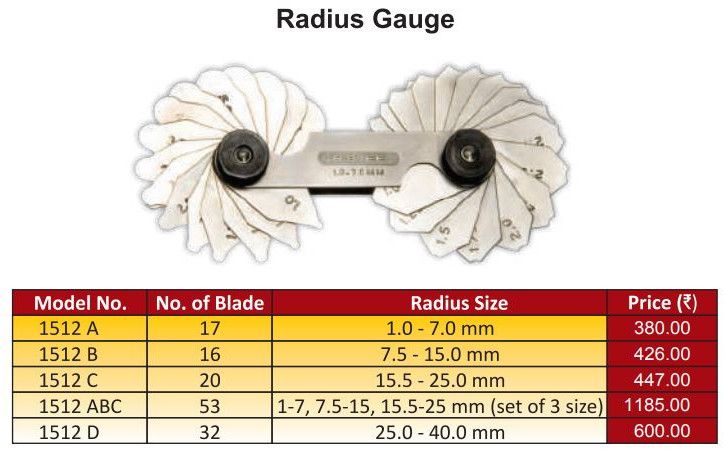

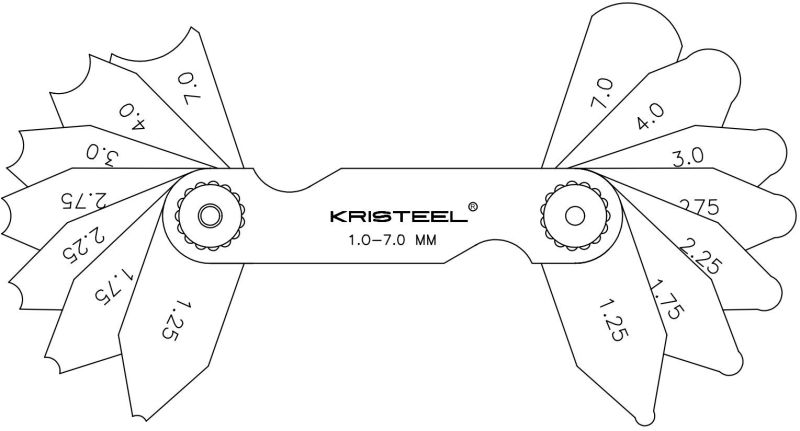

Radius Gauge - 1512 ABC (Set of 1512 A, B & C)

Concave and convex blades. With nickel plated case and locking screw, For the checking of sectors of circle.

Model 1512 ABC
No of Blades: 53
Radius 1-25 mm
Lead, mm :1-25 =0.5

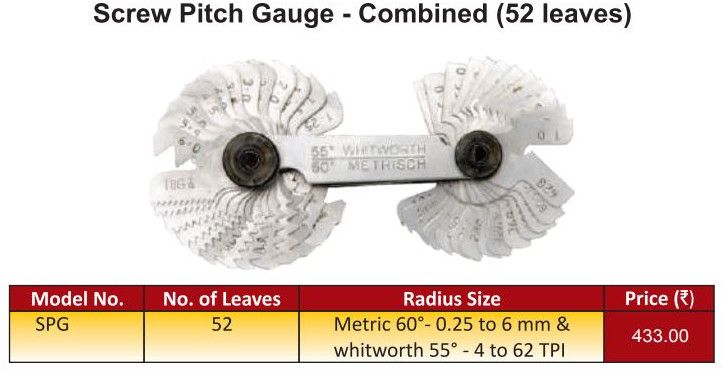

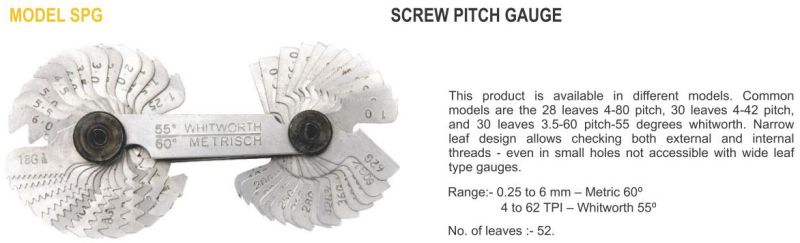

Screw Pitch Gauge

Model: SPG
Brand: Kristeel Shinwa
Range: Metric 60 Degree -0.25 to 6 mm & whitworth 55 Degree - 4 to 62 TPI
Number of Leaves: 52

Product Description

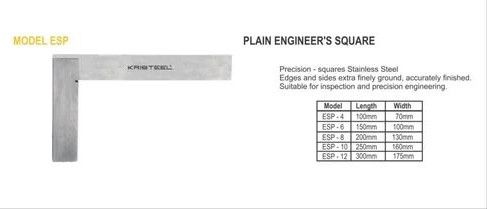

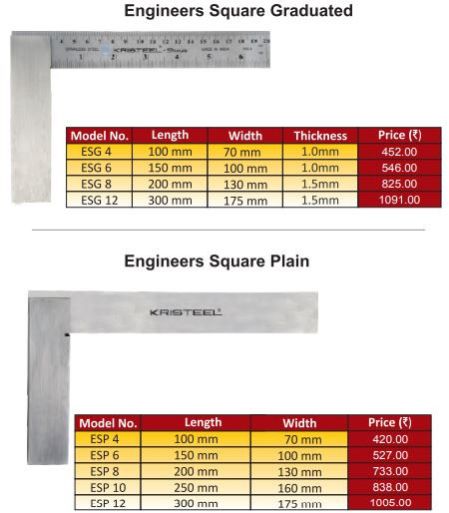

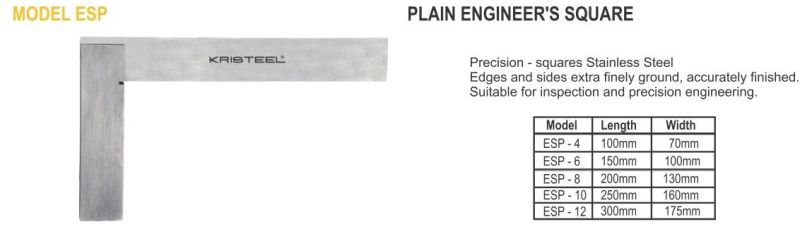

Engineering Try Square Plain

Model: ESP 6
Brand: Kristeel Shinwa
Size: 150mm & 100mm
Thickness: 1.0mm

Other Sizes Available:

4 Inch
8 Inch
10 Inch
12 Inch

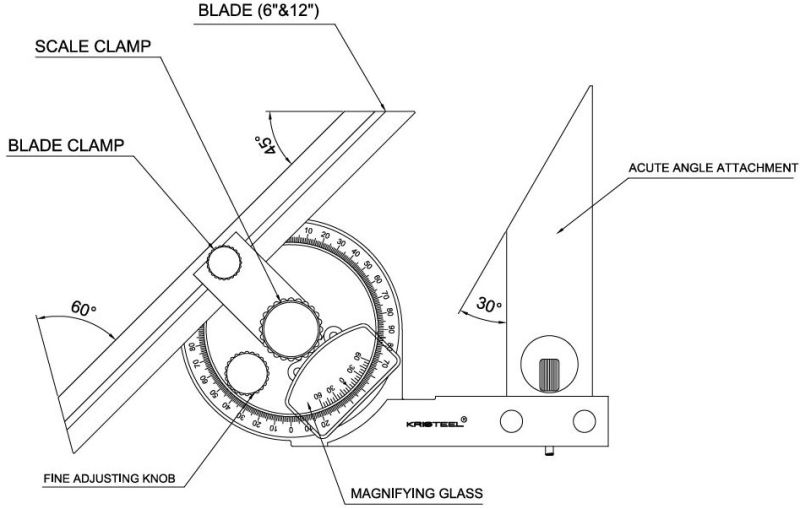

Universal Bevel Protractor (Vernier Bevel Protractor)

Bevel Protractors are the Angular measuring devices. Universal Bevel Protractor (Vernier Bevel Protractor) is the simplest angular measuring device which is having a Vernier Scale(Similar principle as the Vernier Calliper) along with the acute angle attachment

A bevel protractor is a graduated circular protractor with one pivoted arm; used for measuring or marking off angles. Sometimes Vernier scales are attached to give more precise readings.

Explanation: Bevel protractor is the simplest instrument for measuring angles. It measures the angle between the two faces of a component. It is used to test angle for very close tolerances. The range of bevel protractor is 0-360⁰

If we use a metre scale for measurement of length, it may have graduations at 1 mm division scale spacing or interval. A Vernier scale on caliper may have a least count of 0.1 mm while a micrometer may have a least count of 0.01 mm. The least count error occurs with both systematic and random errors.

High Precision angle gauge for accurate angle measurement of machines moulds & jigs. can be attached to Height gauge. Comes with Blade Length of 150/300mm & with acute attachment.
