| Business Type | Exporter, Supplier, Trader, Distributor |
| Resolution | 0.001 |
| Automatic Grade | Semi Automatic |
| Condition | New |
| Click to view more | |
Product Details
Product Description

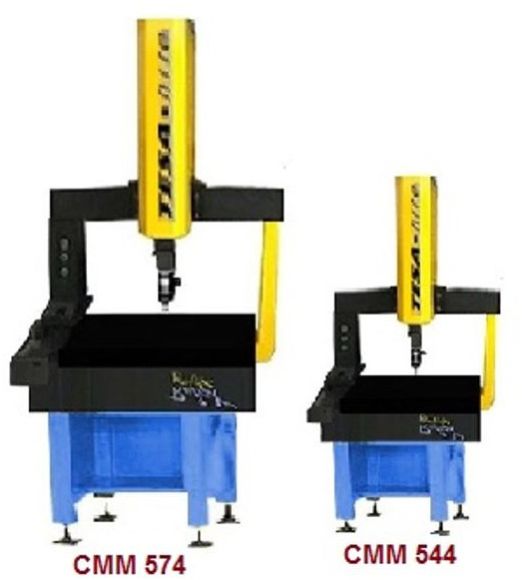

Co-ordinate measuring machine reflex tesa model-544/brown & sharp
Iso met metrology authorized dealer
We provide annual maintenance services
High precision cmm floating on air bearing with micro hand wheel forinspection of projected geometry, cylinder, circles, line, angle withrenishaw touch trigger probe automatic report generation fine touchwheel measurement with cad transfer. Specifications:measuring rangex-axis mm 500y-axis mm 400z-axis mm 400resolution μm 0. 001 mmaccuracy, mpee μm below 3. 5 + l/300generalwork piece weight kg 300mmclearance under bridge mm 400 mmguide system air bearing high precision moving on all axiswith 8 kgs. Air adjustable pre-loaded. Work table granite material with m8/m10 tapped insertsmode of operation manual report automatic and re-measure automaticrenishaw probe tp8 built in3d cmm software geo packwith cpu and cmm controller. Including:mechanical structureconsisting of granite guide ways on all axis with fine hand wheelscomplete working & preloaded air bearings. Counter balanced z axis. Backlash free driving system. On all axes. Evaluation unitcomprising of cmm controller drives card, counter card &associated electronics built in cpu window xp7. Full operating softwaregeometric measuring software. Windows based software for 3dmeasurements. Report and cad model generation, dimensionspositions, 2d,3d distances, angles, tolerances, radius,3d inclinedwhole, point, line, plane, hole, pin, cylinder, theoretical rotation andshifting of the reference system, cylinders features additionally thesurface option adds best fit part alignment.
Probing systemrenishaw tp8 probe head with interfacetouch trigger probe 7 standard styli kit 10mm,20mm,25mm,30mm,50mm,75mm,100mm and star head, calibration sphere : 30 mm diawarrantee & support for one yearbuilt in c. P. U.
Above machine inworking condition under warrantyfor 2 years at customer site.
Add on cnc with renishaw t3 andpc dims cnc cmm software optionto suit all machine.
Equipment and room condition 20* temperaturerequired before installationindependent compressed air with air dryer 10 kgs. Barservo stabilizer, air drier with filter.
