500.00 / 1 hour
Get Best Price
| Type of Drawing | Structural Detail Drawing |
| Details of Connections | Yes |
| Scale | As per Requirement |
| Service Location | Anywhere in the World |
| Click to view more | |
Service Details
Type of Complexity
Any level of complex drawings
Sectional Drawings
Yes
Type
2D Detail Drawing Service
Usage
Structural Detailing For Different Industries
Components
Structural Components, Assemblies, Connections, Bolts, Nuts
Services
Cost Estimation, Optimization, Detailed Bill Of Material
Features
Bolt And Flange Connections, Welding Connections, Optimization For Cost Reduction, Sectional Views, Dimensions And Tolerances

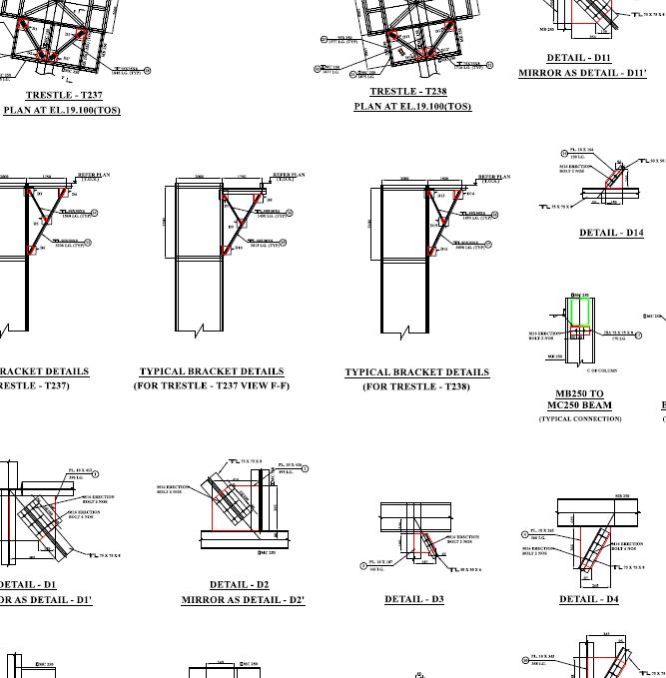

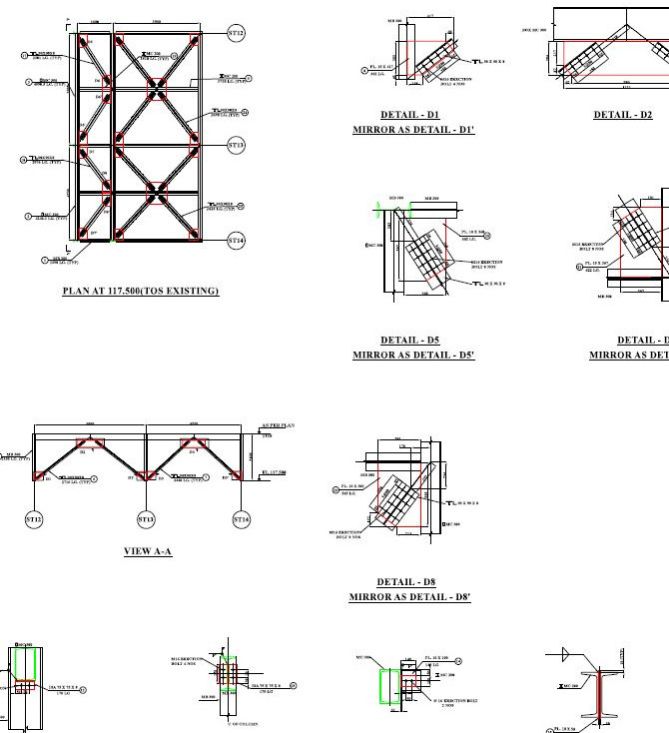

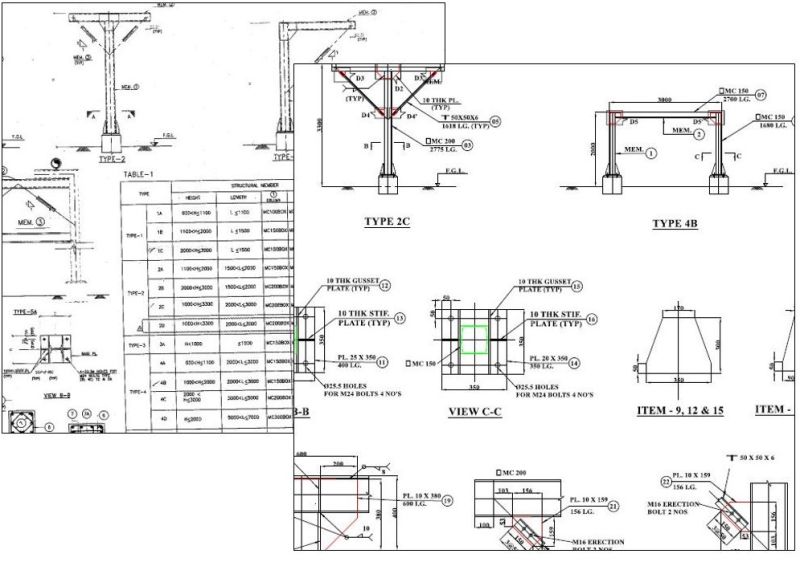

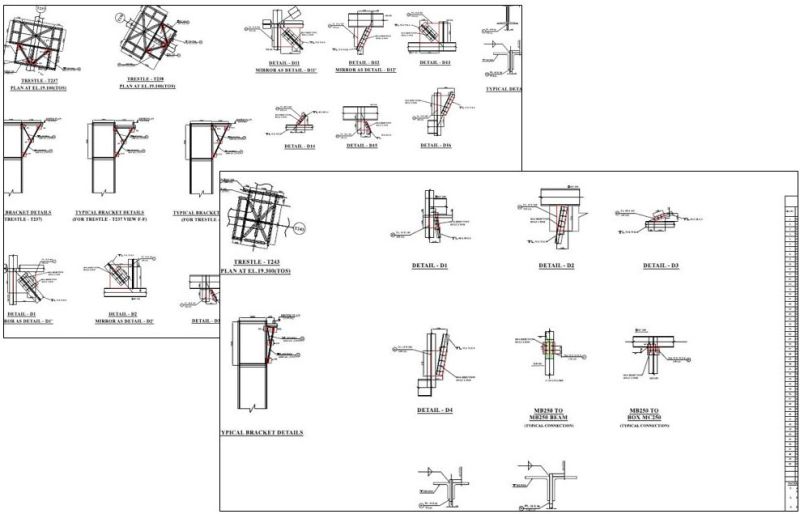

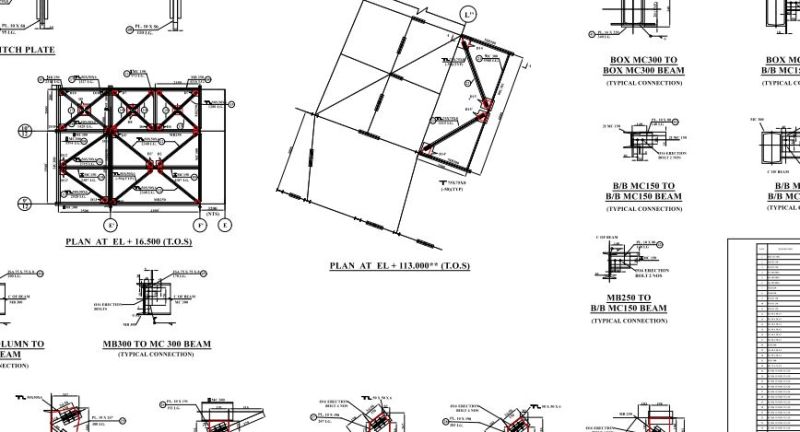

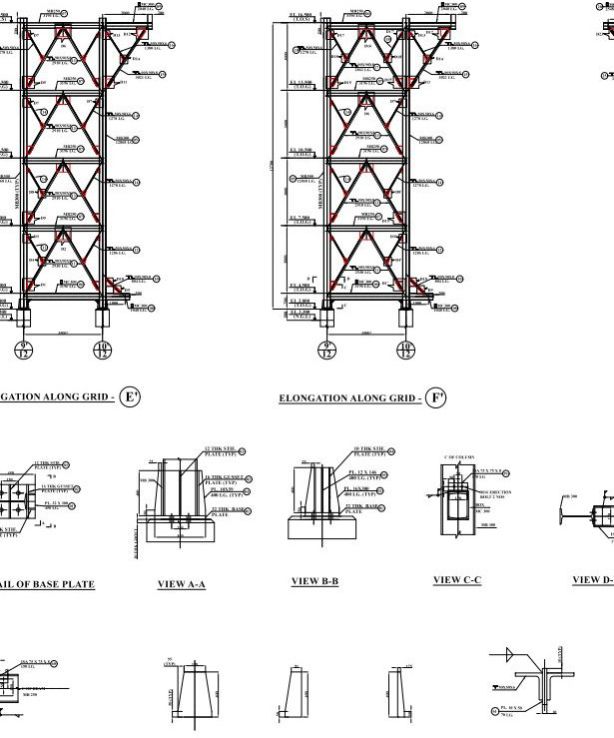

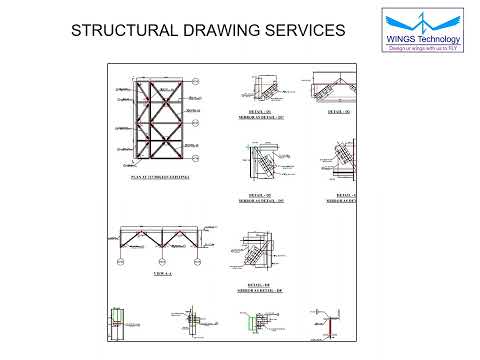

Structural Detail Drawing
We are providing 2D Detail drawing services for different kind of Industries. Different types of Structural components, assemblies, connections, bolts, and nuts, We provide serives for cost estimation and Optimization. Detailed Bill of material with product specifications material properties, weight and cost.
- 2D Detail Drawing with Bill of Material
- Bolt and Flange Connections
- Welding Connections
- Optimization / Cost Reduction
- Sectional Views
- Dimensions and Tolerances
- Scale as per requirement
- Drawings as per required standards
Looking for "Industrial Structural Steel Detailing & Design Service" ?
